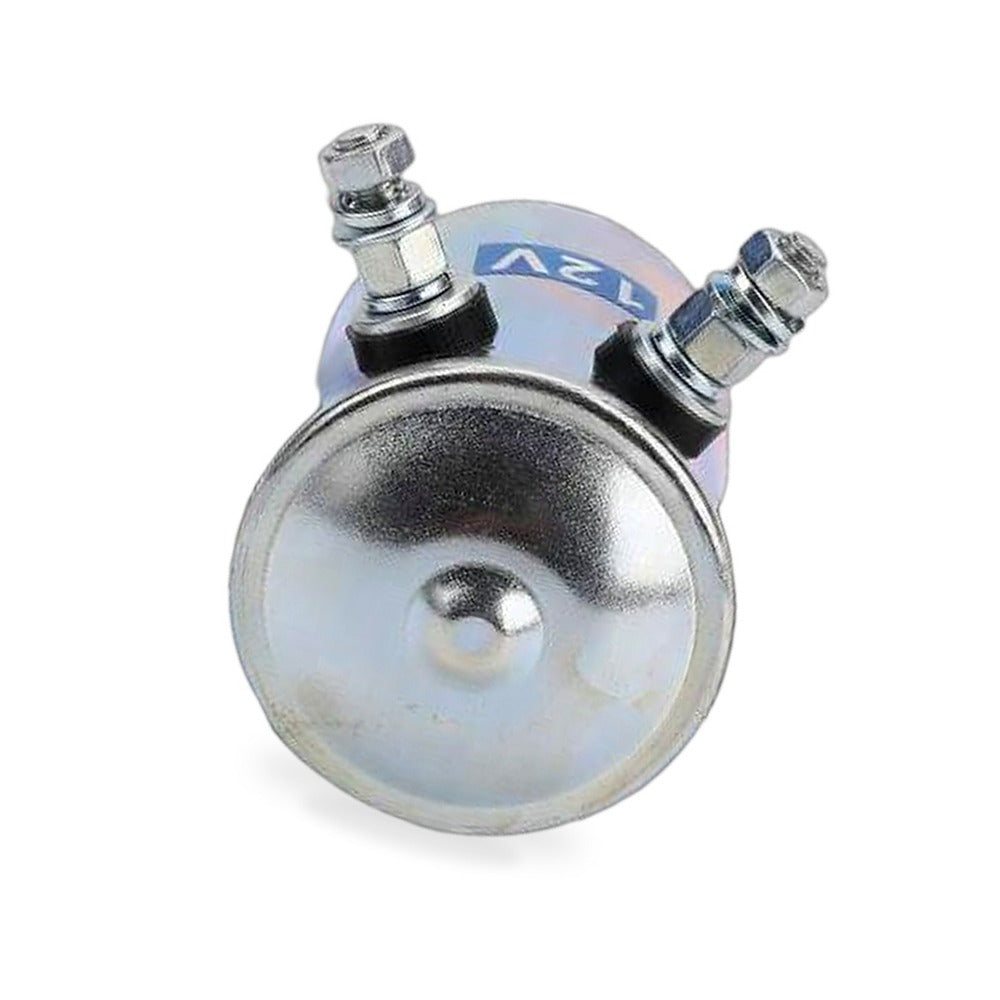

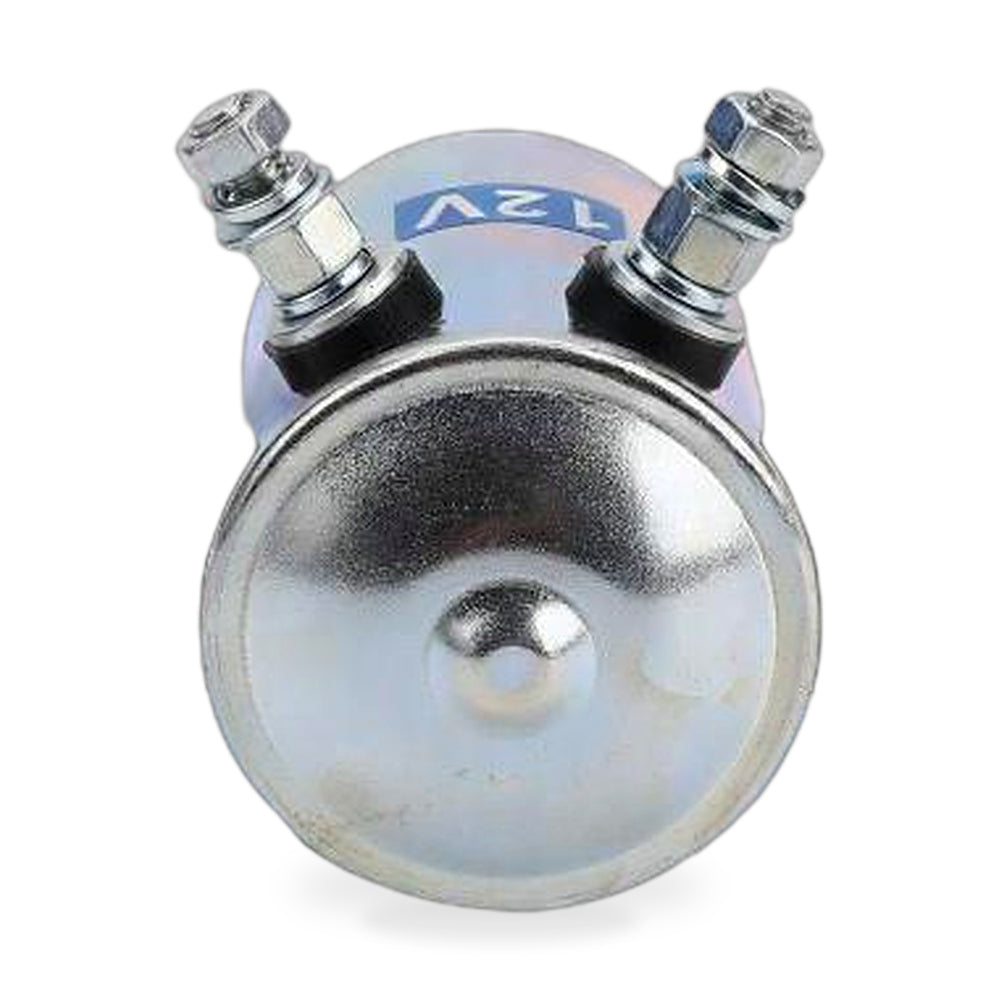

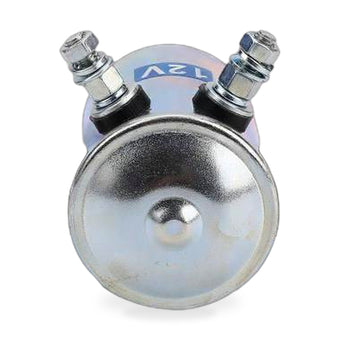

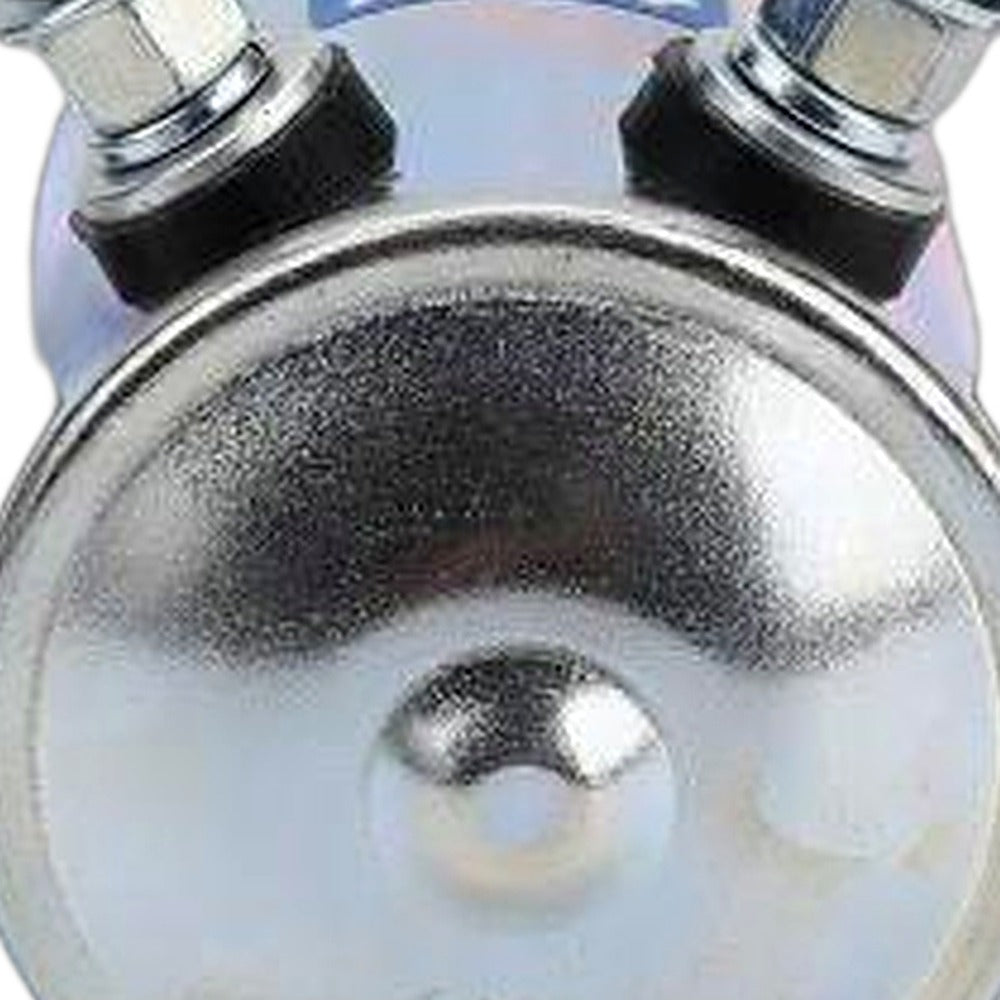

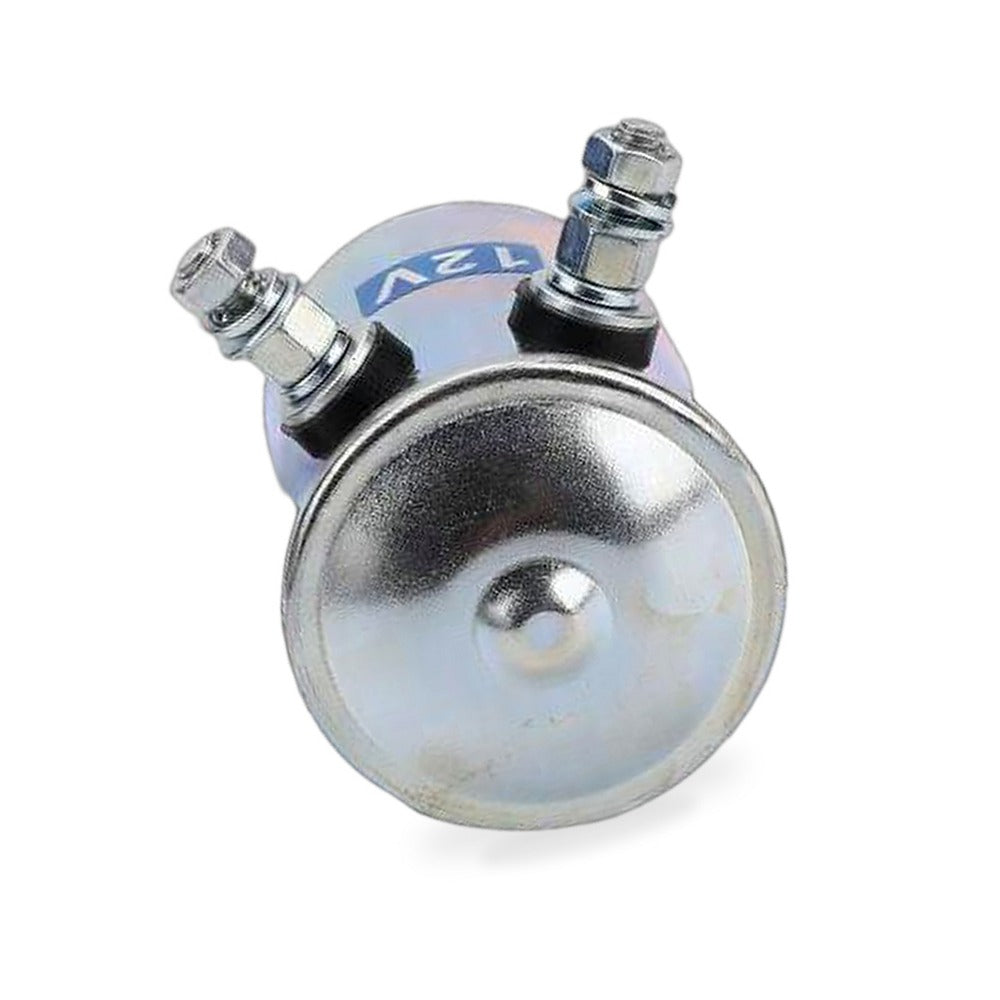

Universal Winch 12V Start Switch Suitable for 200AMP Start Solenoid Relay

**CAUTION: ALWAYS USE A BACK-UP WRENCH TO HOLD THE BOTTOM NUT WHEN TIGHTENING**

Feature:
Copper Stud terminals 5/16″-24
Insulated Coil terminals 10-32
Plated steel housing, nuts & washers Inc.
Mounting holes 8mm x 15mm, 56mm CTC
Mount with brand cap facing DOWN
Int. ratings: 10 sec ON, 30 min OFF

Specification:
Brand: MAXCOOL
Type: Start Solenoid
Case Material: Metal
Number Of Terminals: 4
Dimensions: H 65 x D 64 x W 87
Mounting Bracket: 7mm x 10mm centre to centre 60mm
Contacts: Copper
Coil Rating: 650A make, 100A break
Coil Resistance: 17.5Ohm, 4 Studs
Amperage: 200A
Body Material: Plated Steel Housing
Earth: Insulated
Voltage: 12V
Fitment Type: Direct Replacement

Package Included:
1 x Start Solenoid

Note:
Please allow slight 1-2cm difference due to manual measurement and a little color variation for different display setting.
