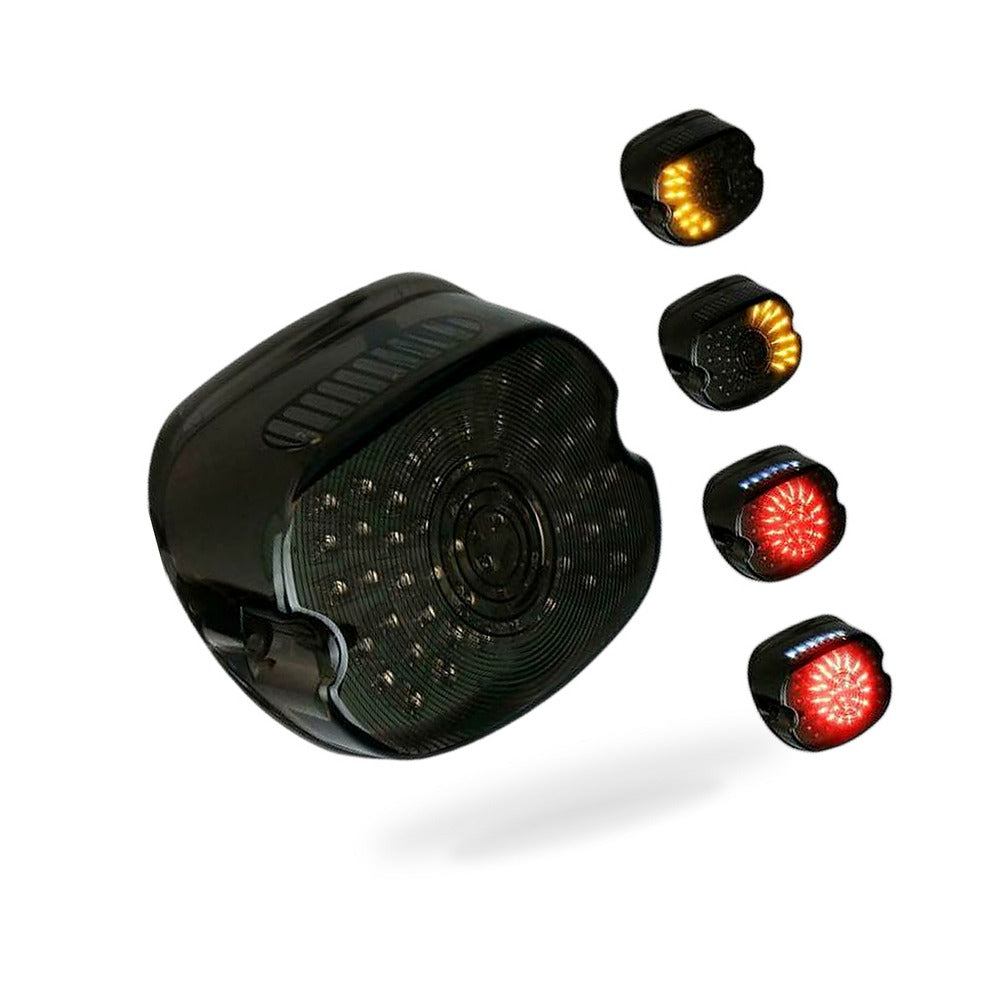

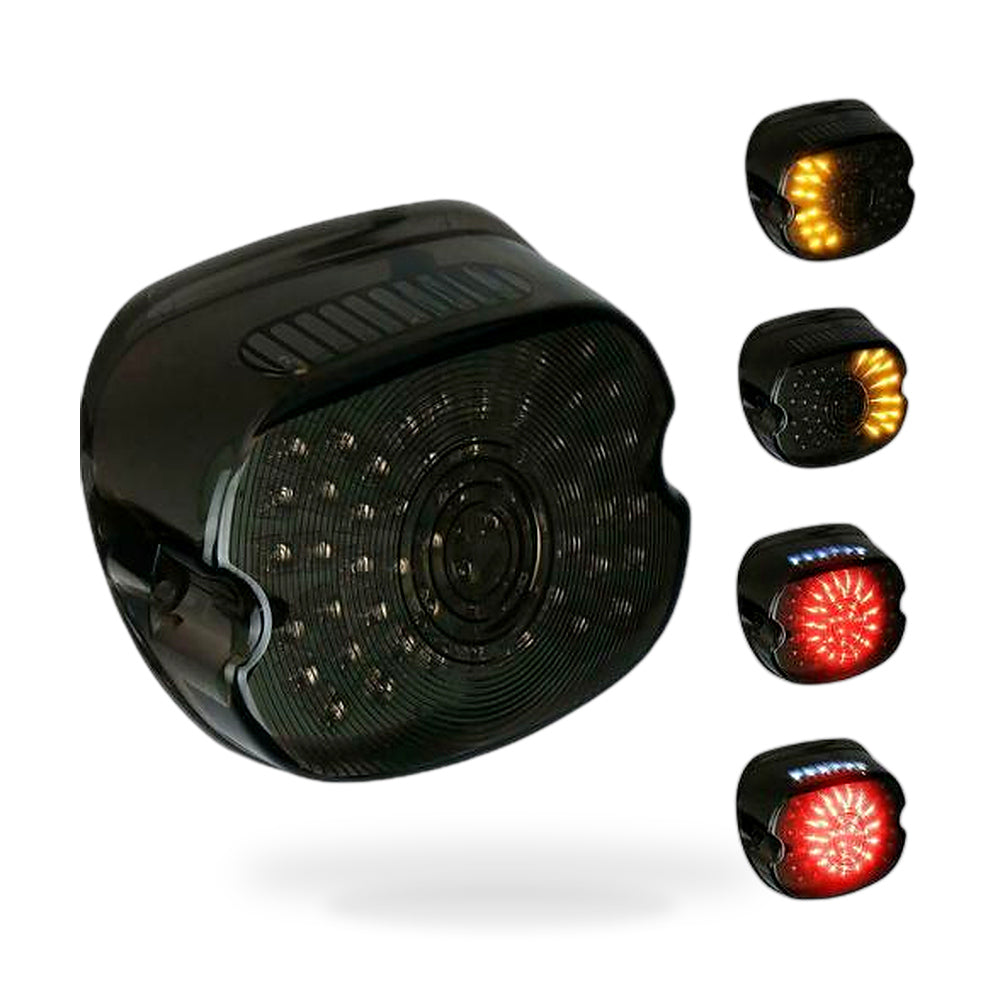

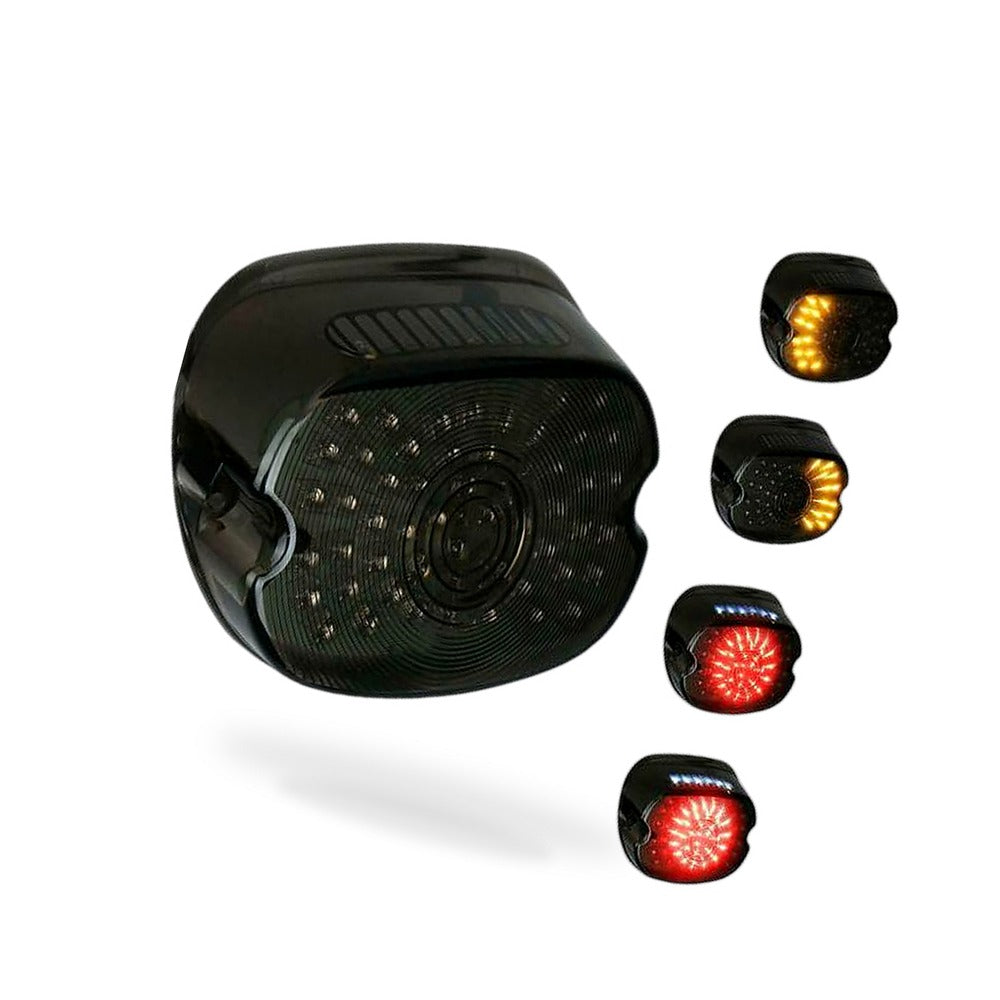

LED Rear Tail Light Brake Smoke Suitable for Harley-Davidson FLST

Feature:
Functions All in one: Running, Brake and Turn Signal. Black wire is Ground; White wire is Running; Yellow wire is right turning; Blue wire is left turning; Red wire is brake.
Upgraded plug for wires, built-in turn signals function really gets drivers' attention. Lay Down Style, angled to follow the curve of your stock fender for a customized look. The light uses a polycarbonate plastic shell for enhanced durability, high-quality LED chips, and mastercrafted construction. Completes the look of your bike and improves safety.

Specification:
Material: ABS Plastic
Lens Colour: Smoke and red
Turn signal light colour: Amber
Brake running light colour: Red
Voltage: DC 12V
LED Quantity: 60 LEDs

Wire Connection:
Black Wire - Negative
White Wire - Taillight
Red Wire - Brake Light
Yellow Wire - Turn Right
Blue Wire - Turn Left

Compatible with:
Please ensure this part is suitable for your motorcycle before bidding.
Suitable For All 1991-2010 FLST Models (except 1991-2001 FLSTF, 2005-2010 FLSTN, 1997-2003 FLSTS, 2005-2007 FLSTSC, 2010 FLSTSE)
Suitable For All 2002-2010 FXST Models (except 2002-2007 FXSTD, 2007-2009 FXSTSSE, 2008-2010 FXCW/C)
Suitable For 1991-2010 Electra Glides (except 2005 FLHTCSE, 2009 FLHT Standard), 1998-2008 Road Glides, 1991-1996 Tour Glides, and 1994-2010 Road Kings (except 2007-2008 FLHRSE, 2009-2010 FLHR)
Suitable For 2001 FXDX/T and all 2002-2010 Dynas (except 2009-2010 FXDB, 2009-2010 FXDFSE, 2010 FXDWG)
Suitable For 2002-2010 XL (except 2007-2010 Nightster, 2009-2010 XL883N)

Package Including:
1 x Motorcycle Tail Light

Note:
The lamp is not equipped with screws. You need to provide 2 screws yourself. Screw hole diameter: 5mm, distance between holes: 115mm.
Please confirm the red wire (brake function) and white wire (running function) positions before inserting into the white plug of the taillight, as they cannot be removed once inserted. Contact us for installation or quality questions.
