Features:
(1) Display Function:
*Speed display, power-assisted gear display, power indicator, fault prompt, total mileage, single mileage, headlights and single driving time display.
(2) Control/Setting Function:
*Power switch control, headlight switch control, 6Km/h boost control, wheel diameter setting, speed limit setting, meter sleep setting, backlight brightness setting, voltage setting.
(3) Harness Description:
①Red (P+) meter power cord
②Blue (VCC) electric door lock wire
③Black (GND) negative wire
④Green (RX) Meter data receiving
⑤Yellow (TX) Meter data transmission
(4) Meter Setting Function：
①Long press the up and down buttons of the meter to enter the meter settings.
*P01: Backlight brightness, level 1 is the darkest, level 3 is the brightest.
*P02: Mileage unit, 0: KM; 1: MILE.
*P03: Voltage level: 24V, 36V, 48V.
*P04: Sleep time: 0, no sleep; other numbers are sleep time, range: 1-60; unit minutes.
*P05: Power assist gear 1-9
*P06: Wheel diameter: unit, inch; precision: 0.1.
*P07: Number of speed magnets: range: 1-100.
*P08: Speed limit: speed percentage range 0-100%, 100 means speed 100%.
*P09: Zero start, non-zero start setting, 0: zero start; 1: non-zero start.
*P10: Drive mode setting 0: power-assisted drive (the handle is invalid).
1: Electric drive (by turning the handle to drive, the power gear is invalid at this time).
2: Power-assisted drive and electric drive coexist at the same time.
*P11: Assist sensitivity setting range: 1-24.
*P12: Assist start intensity setting range: 0-5.
*P13: Power-assisted magnet type setting There are three types of 5, 8, and 12 magnets, of which 5 and 8 are single Hall power-assisted sensors.
②Setting 12 is used for dual Hall assist sensors.
*P14: This function is not available yet.
*P15: This function is not available yet.
*P16: ODO reset setting, Long press the up button for 5 seconds ODO reset
Specification:
Brand: ALL IN HOME BOX
Type: LCD Display Meter
Material: ABS
Colour: Black

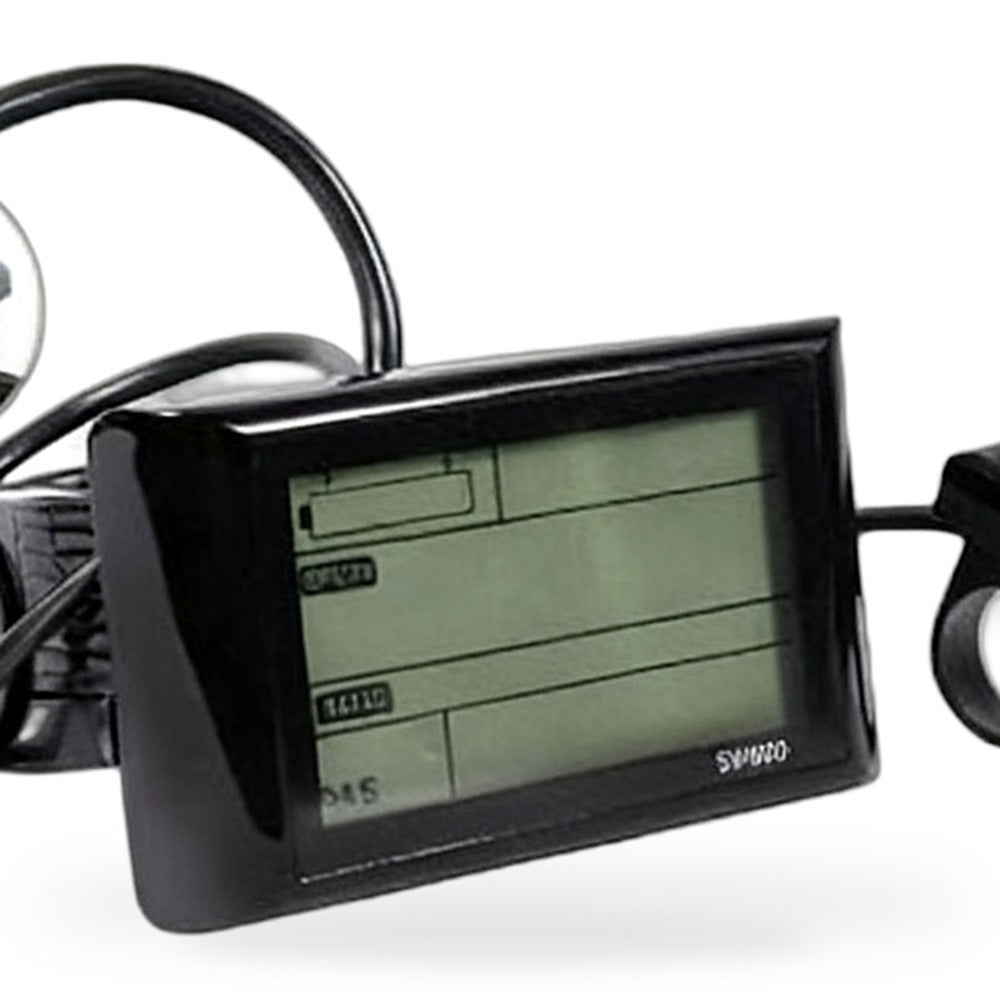

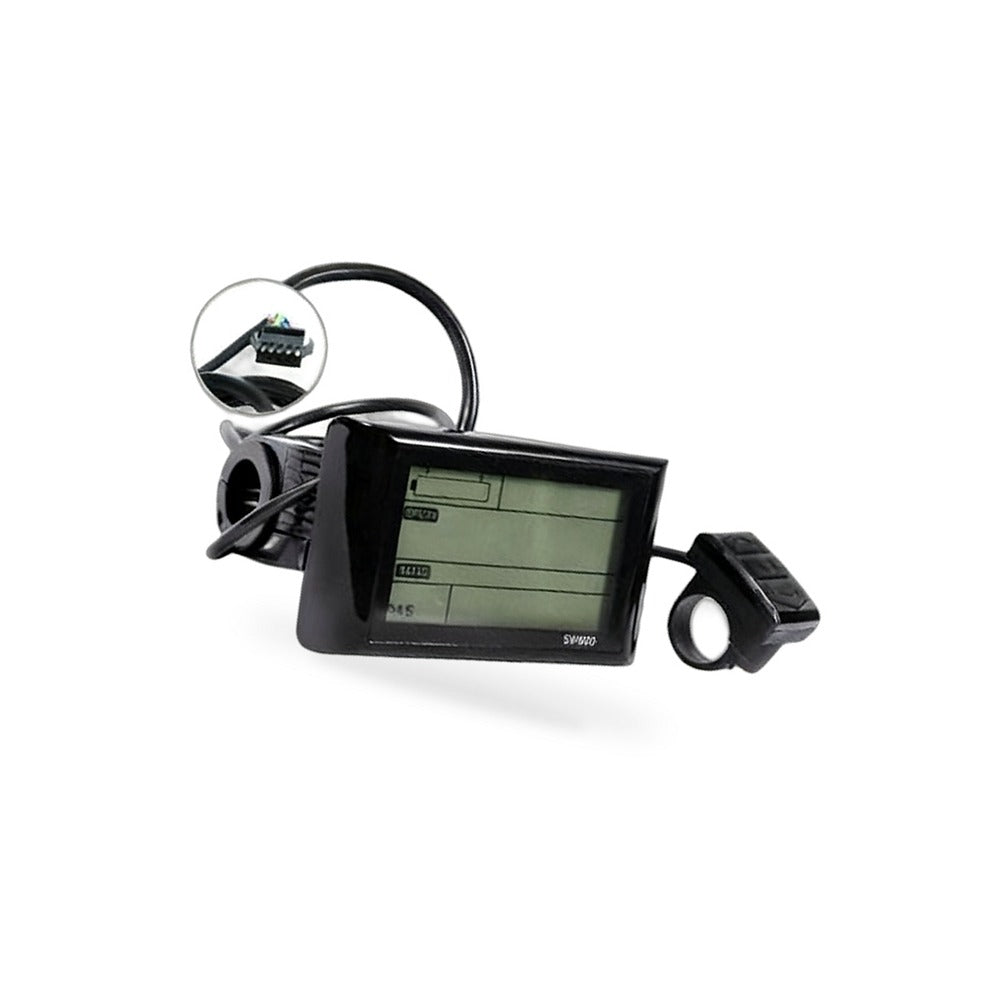

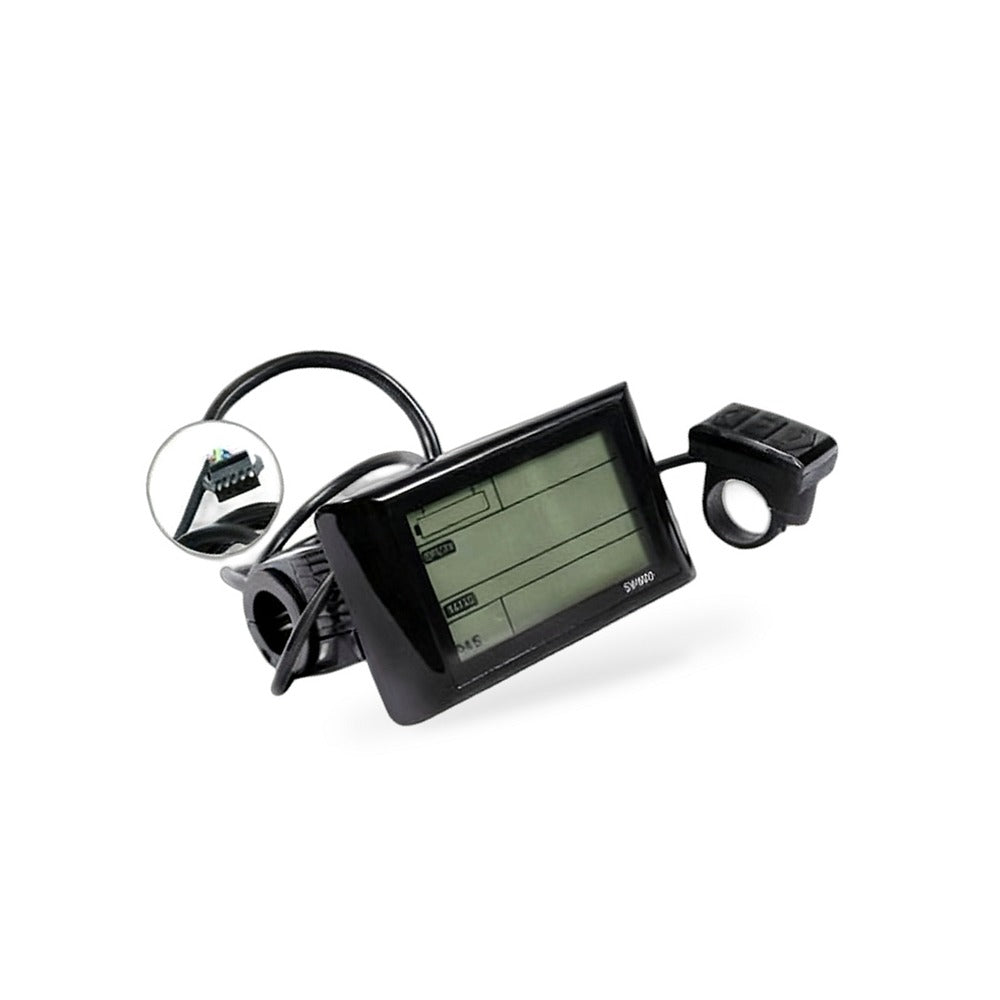

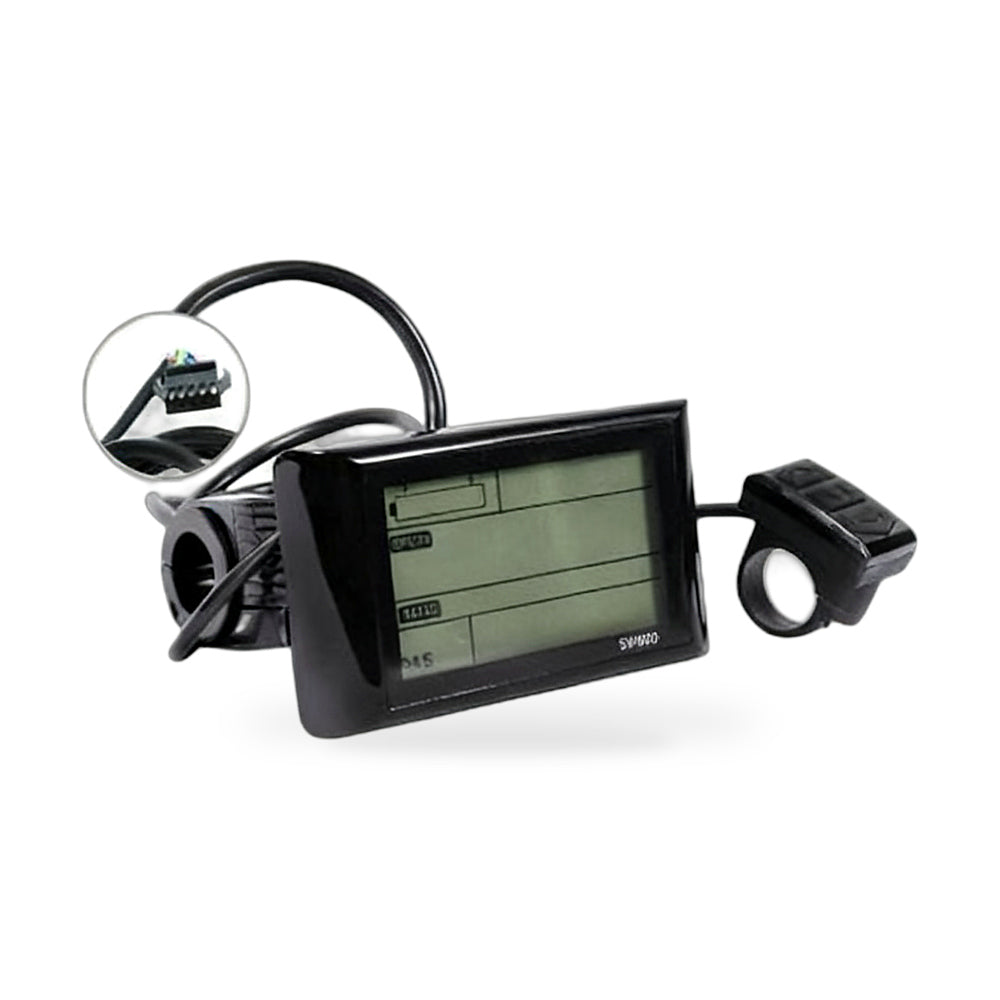

Model: S900
Package Included:
1 x Speed Meter (With Waterproof Port / Normal Port)
Note:
Please allow slight 1-2cm difference due to manual measurement and a little color variation for different display setting.
